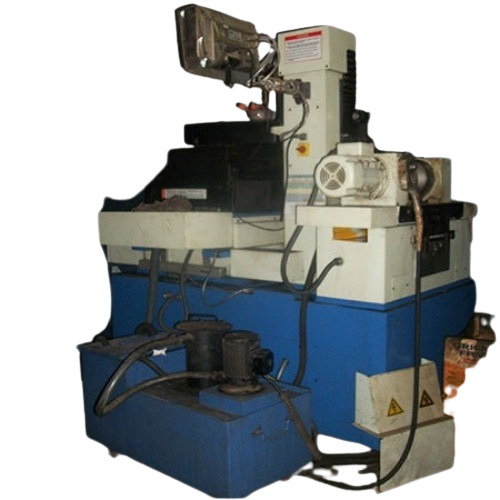

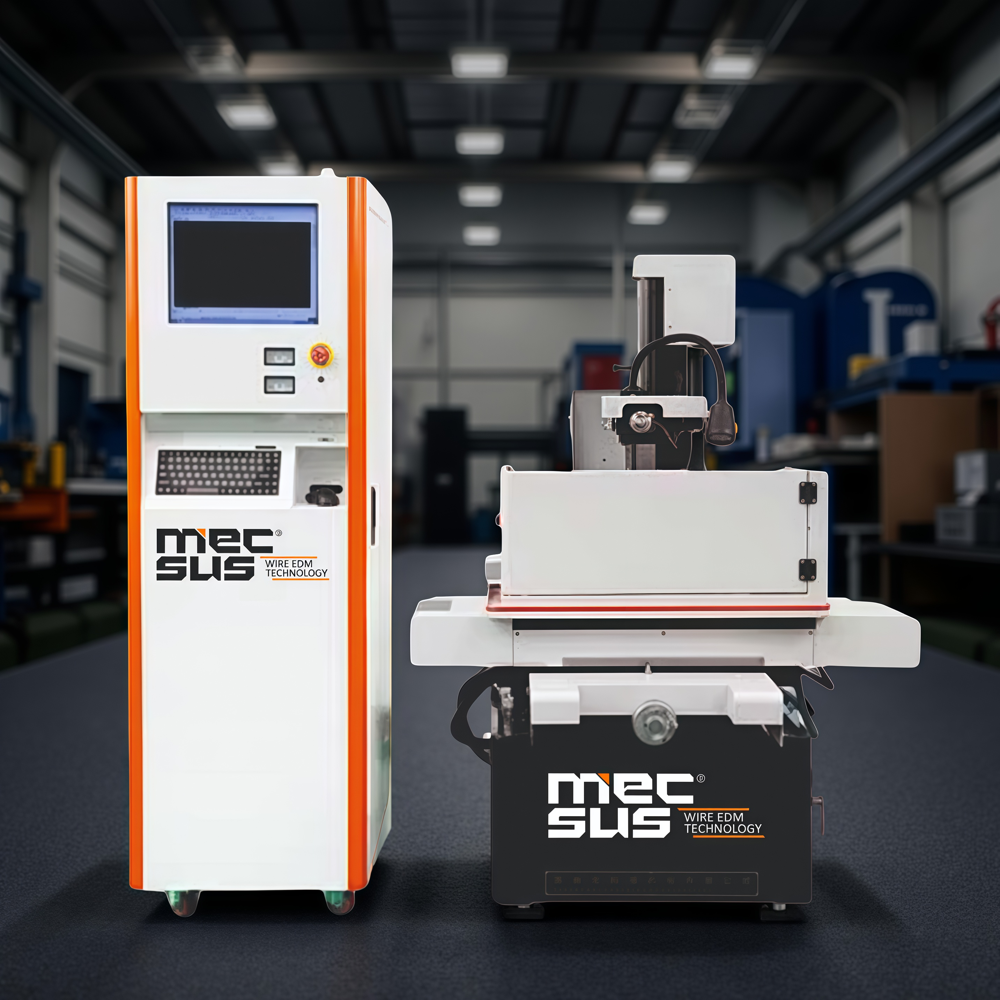

Cnc Wire Cutting Machine

What is Wirecut Machine?

Wire-cut EDM, wire cutting, wire erosion, wire burning, wire cut electric discharge machining, wire eroding 'cheese-cutter' EDM, etc. are all other names for wire EDM.

Since the wire does not come into contact with the workpiece, the cutting process can proceed without altering the material's shape or the wire's path. This is achieved by rapidly charging the wire to the required voltage. Deionized water also surrounds the wire to protect it.

What Machine is used to Cut Wires?

1. Wire Strippers

It is necessary to peel the insulation off electrical wires before they may be connected. One can choose between a manual one or an automatic one. Both the destructive method of biting off the insulation, which can cause pain, and a hefty dental bill, and the more time-consuming method of using scissors are available.

Electronic counters, programmable logic controller (PLC) based controllers, and a touch screen (HMI) with servo motors are used to set up and run the HDC-120. Cutting blades, tubes, and material guides may all be swapped out quickly and efficiently. The powerful cutting mechanism and long-lasting roller feed system are just two more elements built for nonstop use and service.

When making rods of a specific length from coils, a straightening and wire cutting machine is utilized. In applications where Rods are subsequently manufactured from wire, this machine is indispensable for its ability to straighten coiled wire precisely, with a clean cut, within tight tolerances, and at a high rate of production.

Wire-cut A thin wire, or cathode, is tensioned and directed along the desired cut path or gap in EDM (or WCEDM), removing the electrified current as it travels.

Developed with the operator's ergonomics in mind: Staircases and gangways provide convenient access to the machine. Ability to move and replace wires quickly and easily. The touch screen provides a quick and simple method for the operator to control the equipment.

6. Laser Cutting Machine

Steel, plastic, or wood may be precisely sliced or etched with a laser cutting machine's intense laser beam. CNCs are computer numerically controlled machines that are programmed with cutting, engraving, or etching parameters using specialized CAD (computer-assisted design) software. When it comes to production, the scope of the job dictates whether small or big laser cutting equipment is needed.

Selecting materials with good forging achievement, shape, and small heat treatment deformation can help limit the distortion of the workpiece caused by wire cutting. The technical specifications call for heat treating the workpiece material.

2. Processing of threading holes

Processing wire holes before wire cutting are required for processing closed holes and some punches. For the processing to begin at the correct location, the threading hole's location must match the programmed coordinates.

When cutting wire at a medium speed, 0.18 mm-diameter molybdenum wire is typically used as the electrode wire, while brass wire, galvanized wire, etc. are more commonly used when cutting at a slow speed. The electrode wire's diameter can be changed to suit the precision needs of the process. To increase cutting speed and lessen the likelihood of wire breakage, select an electrode wire with a diameter of at least 0.2 mm.

Ascertain the work-piece clamping position and method based on the handling shape and size of the work-piece. Clamping techniques for various parts, such as plates, rotating bodies, and blocks, vary. Clamping the workpiece requires specially made clamps. The workpiece needs to be adjusted after it has been clamped. In most cases, this involves ensuring that the workpiece is clamped at the correct height and flatness and adjusting the axial parallelism between the datum plane of the workpiece and the machine tool.

5. Threading and calibrating

Wrap the electrode wire around the wire feeding mechanism correctly to achieve the desired tension. To rectify the row of the electrode wire, you can use the aligner, the spark, or any other method you prefer.

First, the electrode wire must be precisely positioned at the cutting's initial coordinate location. Visual examination, spark, automated alignment, etc., are all examples of adjusting procedures. Today's CNC wire cutting machine tools all come with handy features like automated edge detecting and automatic center finding in addition to touch perception. Their alignment precision is great, and they're easy to use for putting electrode wires.

The precision and reliability of wire cutting machines depend on how well their programs are written. Automatic programming is widely utilized in actual production. After the CNC program has been written, before actual cutting begins, it should be checked and double-checked to ensure it is correct. The wire EDM machine's CNC system provides two options for checking the integrity of a program and Drawing inspection technique. Primarily employed to ensure that the code follows the correct syntax and the drawing's outline,
