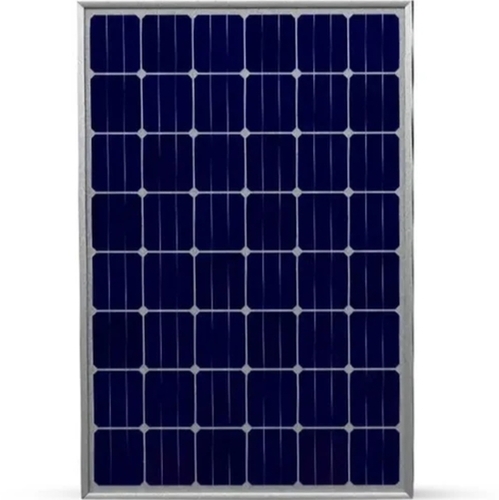

25 Watt 12 Volt Monocrystalline Flexible Solar Panel

We are a reputed name in this industry as a Exporter & Manufacturer of 25 Watt 12 Volt Monocrystalline Flexible Solar Panel in Shenzhen, Guangdong, China. More and more human beings are using solar panels for sale, especially the Flexible Solar Panel, and with good reason. These panels offer so much flexibility and easy to carry, which is not found in other rigid solar panels. You can easily install them at any angle, and they will not take up that much room. This is perfect solution for those people who want solar power, but do not have enough installation space.

Features:
Reliable Source of Renewable Energy
Fast Charging
Deliver the high power output and fast charging capacity.
Up to 20 percent solar cell transformation efficiency.
Light Weight and Ultra thin
Easy to use, carry, hang and install.
IP67 Junction Box
-20 to 70 degree centigrade Working Temperature
Special Semi-Flexible design.
Use this unit attach to any curved surfaces.
Short Cuicuit and surge protection technology.
Durable design, water-resistant and long lifespan.
CE, RoHS and FCC certificates.
Custom Made Available.

Specifications:
Typical Electrical DataAt STC: 25a , 1000 W/m2 and AM 1.5
Model: HT-SP-S120250AAShort-Circuit Current (Isc): 1.6A
Maximum Power (Pmax): 25 WPower Tolerance: A 3%
Optimum Working Voltage (Vmp): 18 VMaximum System Voltage: 600 VDC
Optimum Working Current (Imp): 1.39 AMaximum Series Fuse Rating: 15 A
Open-Circuit Voltage (Voc): 21.6 V

Mechanical Data
Solar Cell Type: Monocrystalline 125 x 125mmConnectors: MC4 Connectors
Number of Cells: 36 pcs small piecesJunction Box: IP67
Panel Dimensions: 540 x 340 x 3mmWeight: 0.7 KG
Thermal Characteristics
Temperature Coefficient of Pmax: -0.38%/a Operating Module Temperature: -40a to +90a
Temperature Coefficient of Voc: -58.9 mV/a Nominal Operating Cell Temperature (NOCT): 45A 2a
Temperature Coefficient of Isc: 2.6mA /a
MC4 Connectors
Rated Current: 30 ATemperature Range: -40A F to 194A F
Maximum Voltage: 1000 VDCIP Rating: IP 67
Junction Box
IP Rating: IP68Output Cables: 2.5 mm2 (90cm long)
Number of Diodes: 1 Diode(s)
Module DiagramIV-Curve
