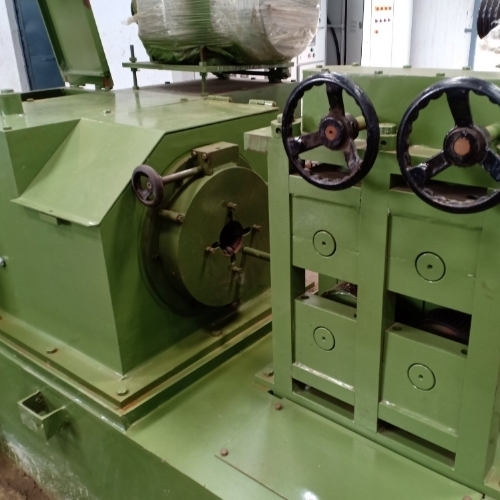

Bar Peeling Machines By Shri Ramkrishna Industries

We are Exporting, Manufacturing, Supplying and Trading a vast range of Bar Peeling Machine in Ahmedabad. This range is manufactured utilizing premium grade raw material, which is sourced from reliable vendors of the market. In addition to this, the offered range is available in different customized specifications and forms as per the emerging requirements of esteemed clients.

Mentioned below are the technical details:
Motor for cutting head 20 HP/1440 R.P.M.
Motor for feeding gear box 5 HP/1440 R.P.M
Coolant pump motor 1 HP/2800 R.P.M
Hydraulic power pack motor 0.75 KW./1440 R.P.M

Head Stock : It involves main spindle which is driven through belts and gears from the main body of the motor. Main spindle is fixed with the cutter head. This head is hold to design the cutting tool. Burnishing Roll Chuck is used for surface finishing.
Feed Gear Box : It is also made up of MS plates. The product is connected with feed rollers which are operated through helical gear box. The shafts used in the machine are mounted on the phosphorus bronze bush. Grease lubrication is done on gear and bearings.

Bed : Cast iron is used for this product. Stock assemblies and gear box are mounted on this product. Also the motor is fixed on the left part of the machine and the gear box motor is placed on the right hand side. An easy way is given for the coolant to flow.
Cutter Head : Cast steel is used for cutter head. Four carbide tools are used.
