White Bt-20-20a Medical Gas Manifold

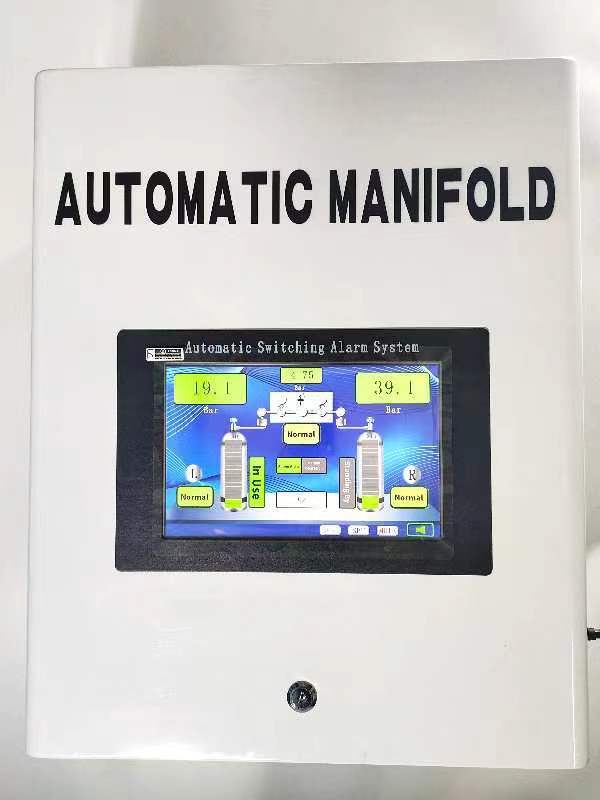

BT-20A Automatic Touch Screen Gas Manifold
Technical parameters:
Rated import pressure: 15MPa
Rated export pressure: 0.03 to 0.85MPa
Maximum output flow: 100m3/h
Empty bottle alarm pressure: 0.1 to 0.8Mpa (adjustable)
Import under pressuring alarm pressureAdjustable, factory-adjusted values:1.5Mpa
Import over pressurized alarm pressureAdjustable, factory-adjusted values:20Mpa
Export over pressurized alarm pressure: adjustable, factory-adjusted value0.8MPa
Exit under pressurized alarm pressureAdjustable, factory-adjusted values 0.3MPa
Fully automatic left and right switch alarm work pressure: adjustable, factory-adjusted value 1.5MPa
Intake high pressure sensor range0-20MPa, Output range of pressure reducing sensor:0-2.5Mpa
Alarm Signals: Sound and light simultaneously (support 485 communication output)
Supply VoltageAC220V/50HZ
Operating VoltageDC24V
Ambient temperature-2040
Ambient humidity: 85
Box Size550*450*230
LCD screen size10.1
Suitable for medical O2, Air, N2O, CO2, N2
