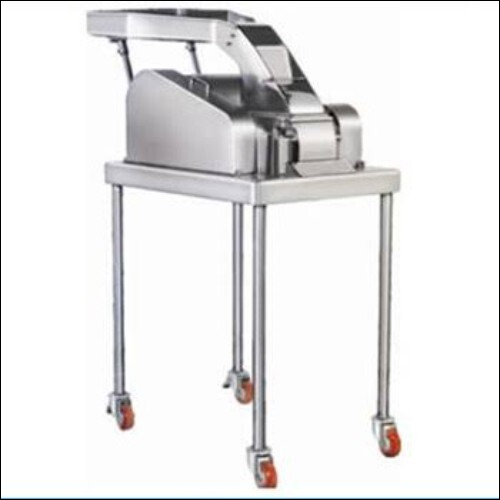

Comminuting Mill - Stainless Steel Body, 1230x760x700 Mm Dimensions | High Output Capacity Of 25 To 300 Kgs/hour, Dynamic Balancing For Reduced Vibration

@page { margin: 0.79in } td p { margin-bottom: 0in } p { margin-bottom: 0.1in; line-height: 120% } a:link { so-language: zxx }Leveraging on our professionals and their market understanding, we have been able to put forth hugely reckoned Comminuting Mill at most affordable prices. This is provided with S.S.belt guards, S.S cladding on base, S.S. cover on motor, Motor rails, Guide rods and Screw. It is made using modern machine and latest technologies. Hence, we are widely acknowledged as remarkable Manufacturer, Supplier and Exporter of Comminuting Mill. Other details are as follows: Beaters assembly bearings are in a separate pillow blocks for ease in maintenance. Very less down time as only beaters assembly will have to be reversed (and not the complete chamber) for making it knife to impact forward or vice- versa which can be done by single operator. Fixed beaters assembly is provided as a standard supply which increase the output by 10 to 30 % & reduce noise level and also easy to clean as there are no cavities. (if product demands, swing beaters assembly ban be provided.Beaters and shafts are of stainless steel 410 quality and beaters are further hardened and chrome plated. Beaters are fitted on a splined shaft.Transmission of heat to the chamber form the bearing is minimum as they are away in separate pillow blocks. This facilities to some extend in processing of heat sensitive products.Beaters assembly is dynamically balanced which reduce vibration and notice level and increase bearing life.Castors provided for mobility and breakes can be applied for fixing machine at one place.Machine is available in Plain & Water Jacketed model. Flame proof electrical can be provided on demand at extra cost. Technical Specification: SR NO DESCRIPTION DETAILS 1 MODEL BEWCMM 2 ROTOR SPEED 1000-2250-4500 RPM 3 BLADES Swinging type with knife & impact edge. 4 OUTPUT 25 TO 300 KGS/HR* 5 SCREEN Round/ Square hole perforated S.S. sheet Or Woven stainless steel wire mesh 6 ELECTRIC MOTOR 7.5 H.P. 5.5 K.W. 1440 RPM 3 PH 7 NET WT 400 KGS 8 GROSS WT 530 KGS 9 MACHINE DIMENSIONS 1230 L X 760 D X 700 H 10 CASE DIMENSIONS 1380 L X 850 D X 1000 H Note: This is available at most affordable prices in various needs of the arena.
