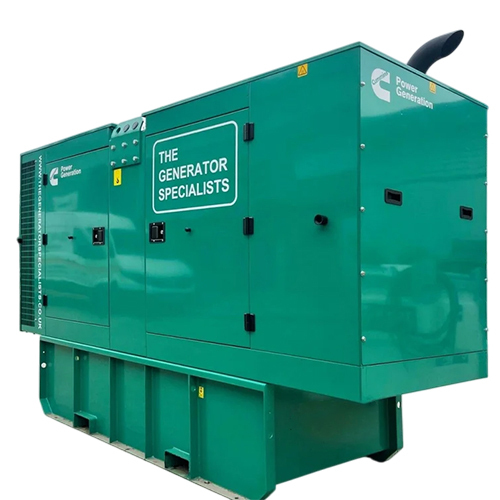

Cummins Genset - Output Range 40kw To 800kw, Water-cooled With Key/auto Start, Optional Sound-proof Canopy, Comprehensive Control System And Short Circuit Protection

This series diesel generator set is powered by Cummins series diesel engine .

Specification of Cummins Genset:
1. Output range: 40KW(50KVA) up to 800KW(1,000KVA)
2. Engine model: 4BTA3.9-G, 6BT5.9-G, 6BTA5.9-G, 6BTAA5.9-G, 6CTAA83-G, NTA855-G, KTA19-G, KTAA19-G, KT38-G, KTA38-G, KTA50-G
3. Alternator: Stamford,Leroy Somer,Marathon series
4. Water-cooled
5. 8hrs operation base tank
6. Key start/auto start
7. Sound-proof/weather-proof canopy is optional
8. 230/400VAC,50Hz/60Hz,0.8pF three phase and four wires alternating current output
9. Frequency: a 3%
10. Frequency at stable state: a 0.5%
11. Frequency deviation at instantaneous state: a +10%
12. Frequency return time: a 3s
13. Voltage deviation at stable state: a A 1%
14. Voltage deviation at instantaneous state: a +20%
15. Voltage return time: a 4s
16. Voltage modulation: a 0.3%
17. Standard configuration of gensets:
18.Control system:
a. Unit voltage,tri-phase load current and frequency display
b. Water temperature,oil pressure display
c. Fuel level,fuel temperature display
d. Audible and visual alarm lamps and buzzers
19. Starting system:DC alternator is used to start engine
20. Short circuit protection:MCCB air switch
21. Cooling system:combined cooling water tank fitted to meet the requirement of radiation at ambient temperature40
22. Filter system:oil,fuel and air filter
23. Accessories:exhaust elbow,bellow,muffler
