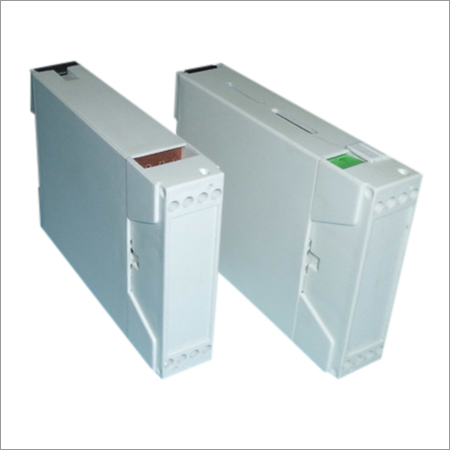

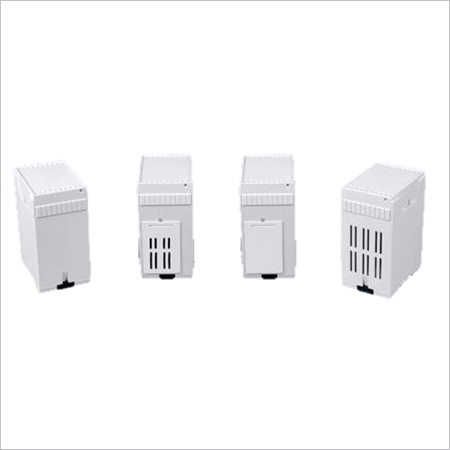

Din Rail Electrical Enclosures 112*88*75

We have emerged as a credible exporter, manufacturer and supplier of Din Rail Enclosures 112*88*75 in Mumbai, Maharashtra, India. We design these Din Rail Enclosures 112*88*75 are designed according to the requirement of client. Client can direct contact us for more details. UEW - 070 : Enclosure with Space for custom connectors.

Features :
Universal mounting in all three commercially available rails. EN 60 715 TH35, TH15 and G32 DIN rails.
Modular construction enables ease in design and servicing.
Enclosures inside: 70 x 70 x 60 mm.
PCBs: Base PCB and auxiliary Vertical & Horizontal PCBs
PCB guides: Integral molded guides in all directions.
Terminal Option: 24 Euro 5mm pitch OR 16 Fixed 3.75 mm pitch.
Knockout blanks for individual terminal configuration in covers of Euro Terminal version
Top cover available with countersunk screws as option.
The system:
Enclosure assembly consists of 35 mm Foot pieces with End pieces and Top cover. Foot piece provides fixing for complete assembly by simple snap fitting on all three rails. Enclosure has Integral molded PCB guides for Base PCB and auxiliary Vertical & Horizontal PCBs.
