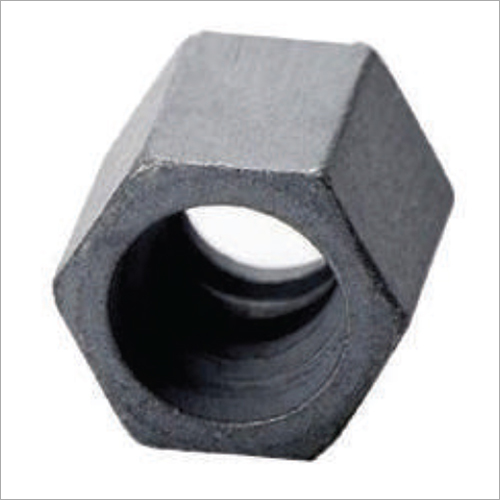

Heavy Hexagon Nuts Astm A 563 M (10s)

Note:



The nut will generally conform ANSI B 18 : 2.4.6M
metric heavy
hex nuts.Threads will conform to class 6H of ANSI B1.1.13M
for coarse
series.Material and heat treatment: To achieve
mechanical properties of
property class 8S 10S ASTM A563M.Nuts of property 8S are used with bolts of ASTM
A325M type 1 and
2 (con-coated) Nuts of property class 10S are used with bolts of ASTM
A325M type 1 and 2 (zinc-coated) (In general nuts of a higher
properties class can replace nuts of a lower property class in a joint.In bolts/nuts assembly, tightening should be done
by rotation of
nuts.All dimensions are in millimeters.

Heavy Hexagon Nuts
ASTM A 563 M (10S):
Dimensions:







Thread
Size


Pitch

S
Max.

e
Max.

m
Norm



M16
M20

2.00
2.50

27.00
34.00

31.18
39.26

16.75
20.05



M27

2.50

36.00

41.57

22.95



M24

3.00

41.00

47.34

23.55



M27

3.00

46.00

53.12

26.95



M30

3.50

50.00

57.74

29.90






Available
in:
Electro Galv, Black, Hotdip glav, Yellow
Passivision.
