High Speed Mixer For Pvc Compounding

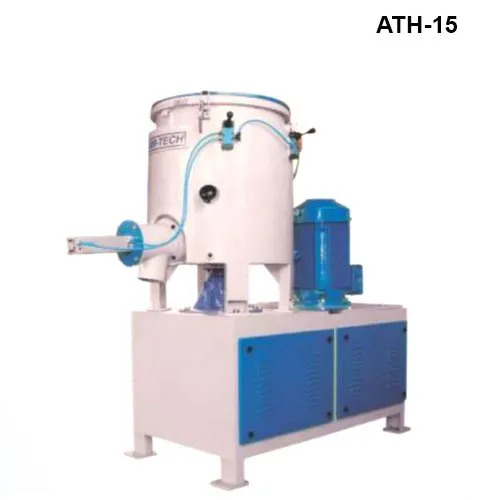

High Speed Mixer for PVC Our range of high speed mixer are designed to meet the mixing usage demands of granules with pigment paste or pigment powder or different colored granules. (Rigid PVC, Plasticized PVC Dry Blends). These high speed mixer helps in achieving uniform blending and mixing. Features Sturdy construction Stainless Steel vessels Corrosion resistant Twin jacket for heating and cooling Inside Polished to Mirror finish Pneumatically operated lid and drain valve Thermo couple to monitor the temperature while mixing operation Timer control for energy saving Heavy duty bearing housing for trouble free working. Applications Blending master batch with the virgin granule Mixing pigments or pigment paste with granule or polymers powder Blending pigment, fillers additives   Model Batch Capactiy Kgs. Vessel Capacity (Ltrs.) Drive (K.w.) Mixing Time (Minutes) Mixing Tool Speed R.P.M. Dual Speed Single Speed No. of Batch Per HR. Single Speed Dual Speed ATH- 50 40-55 150 15/18 18.5 4-6 6-9 900 550/1100 ATH- 75 65-80 200 26/31 30 4-6 6-9 850 500/1000 ATH- 100 90-100 250 38/45 45 4-6 6-9 840 450/900 ATH- 150 120-150 350 46/55 55 4-6 6-9 700 360/720 ATH- 200 160-200 500 56/82 90 4-6 6-9 550 300/600 ATH- 300 280-300 750 90/132 132 4-6 8-12 500 260/520 ATH- 400 400-430 1000 140/190 180 4-6 8-12 500 260/520 Utility: Electric supply 415 Volts, 3 Phase, 50 Cycles, AC. Compressed at 5 cfm and working pressure at 5  BAR Note The mix weights are valid for PVC formula with an apparent density of 0.5 kg/I inclusive of additives and final temperature of 120oC. Direct current motors, frequency variators, or soft-start can be fitted to all models on request.
