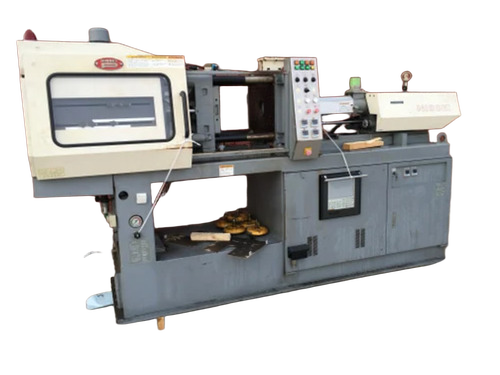

Insert Moulding Machine

Clamping Unit
Five Point vertical double toggle clamp mechanism-Hardened & Grinded.
Large Opening stroke. A. Large distance between tie bars.
Moving platen supported on adjustable wear plates to reduce load on tie bars.
Phosphor bronze bushes provided on moving platen with grease lubrication.
High tensile steel, hard chrome plated generously dimensioned tie bars.
Hydraulic, electrical & mechanical safety provided.
Opening and closing in three steps.
Mould height adjustment by hydro motor.
Hydraulic ejector with single and multiple stroke operation.
Precision, low pressure & fast mould adjustment
Injection Unit
Specially designed nitrided steel screw and barrel with long L/D ratio for better plasticizing performance.
Direct coupled screw with radial piston hydraulic motor and is supported by double row & anti-thrust bearing.
Variable speed of screw with high torque hydro motor.
High efficiency ceramic heaters with energy saving.
Stainless steel barrel heater cover.
Easy material removal by hopper slide mechanism.
Back pressure adjustment device
Hydraulic System
High response hydraulic system design
Hydraulic power pack mounted on manifold block
PQ system a proportionate flow and pressure control with pressure compensation of all machine movements resulting in energy saving
World famous brand hydraulic components
Optional Features
Hopper dryer
Hydraulic/electronic unscrew device
Shut off nozzle
Air blow
Core puller equipment PVC & PET Screw barrel
Mould Clamp
