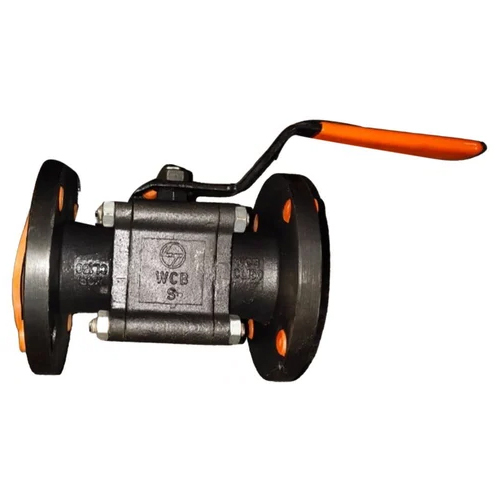

Investment Casting Cf8 1pc Flanged Ends Ball Valve

We are trading and supplying of Investment Casting Cf8 1Pc Flanged Ends Ball Valves from Mumbai, Maharashtra, India. These Investment Casting Cf8 1Pc Flanged Ends Ball Valves are made utilizing of optimum-grade components that are procured from the authentic vendors of the industry. Known for its superb quality and durability. These can be attainable at affordable prices.

Product Specifications

SKU
PI.VA.ST.462266
Type
SS Investment Casting Ball Valve
Size(mm)
40
Test Pressure
30 Kg/cm2
End Connection
CF8 1PC Flanged to ANSI B16.5 RF 150#
Body T.P.
425 Psig
Seat T. P.
300 Psig
Working Pressure
21 Kg/cm2
Body Grade
ASTM A 351 Gr. CF8
Ball Material
ASTM A 351 Gr. CF8
Steam Material
AISI 304
Seat & Seal Material
P.T.F.E.
Mfg. Std./Grade
BS 5351 / API6D
Insp. & Test. Grade
BS 6755 / API598
Lever Material
SS with PVC Sleeve
