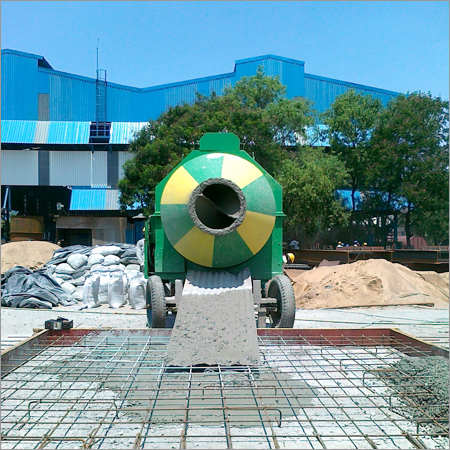

Mini Mobile Concrete Batching Plant (Reversible Mixer)

We are leading manufacturer and supplier of Mini Mobile Concrete Batching Plant (Reversible Mixer) in Ambikapur, Chhattisgarh, India available with following details.

Specifications:
Model: RCM 800E
Output of 12. cu. mtr. / hr.
Batch Capacity of 0.6 cu. mtr. / hr.
10 hp 3 ph electric motor.
Heavy duty, robust and balanced chassis.
4 Nos. Pneumatic wheels.
Mixing Drum - Reversible type made in ST 52 with forward rotation for mixing of concrete & reverse rotation for discharge of concrete.
Hydraulic Operated Hopper with Heavy- duty power pack.
Adjustable 180 liter water tank with overflow arrangement.
Concrete Discharge Height of 1.3 metres (approx).
Machine Dimension 4050x2900x3150 (LxBxH).2500KG

Special Features:
1. Three Bin Hopper with Load Cell based digital weighing system.
2. Automatic Water Dozing System
3. Centralised Lubrication System
4. Hopper Vibrator
5. USB Facilities or Printer Available
6. Chute 8 inch for Concrete Discharge
7. Main motor & water motor both are cromton creaves make
