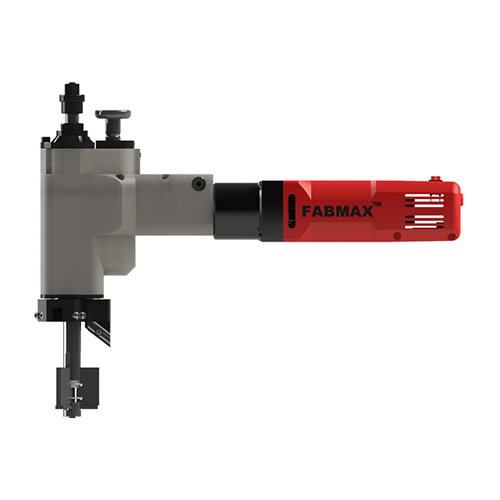

Portable Pipe with Bevelling Machine

Model PTB - 3Range: 88-306 mm i.d.Bevel/Face/Counter Bore

Applications
Tube & Pipe Manufacturers.Project Sites for In-site Machining.Manufacture & Repair of Heat Exchangers, Boilers & Condensers.Shutdowns at Power Stations, Petrochemical & Offshore Sites,
where emergency repair of Welded pipes are critical for successful
plant operations.Shipyards, Fabrication Shops, Nuclear Sites.Precision Weld Preparation for Orbital Pipe Welding.Environments where Grinding could be hazardous & not recommended for the welding process.
Technical Features
Quick and secure clamping by internal bore locking systemAir Motor drive having excellent power to weight ratio, compact
size. All machines fully portable having operational flexibility.
Single person operation.Machines with HSS Tooling, Optional accessories like cutters for
special forms of weld preparation and angles of bevelling available. We
provide Tool Bits for Titanium Pipes.Contact us with your specific requirements. If your requirement
is not in our standard line, we shall develop a customized design to
meet your specific requirements.To accommodate solutions in which the purchase of a machine is
not economically feasible, we provide leasing options and contact
services, backed by fully factory support.
Specifications
Working Range: Tube i.d 88mm - 306mmMaximum Tube Wall Thickness: Upto 16mm (All materials).Maximum Tube O.D.: 338mmSpindle Stroke (feed): 40mmMotor Power: 1.60hpWeight: 30 Kgs
Standard Accessories
Model PTB3 supplied with Grinding Segments (Clamping fins) to cover
full range i.e. i.d 88mm. to 274mm. 2 Nos. HSS Tool Bits 37.5o for
Bevelling. Tool bits for other Bevel angles, facing & counter
boring also available at extra cost.
Machine duly packed in metal case along with spanners, key.Optional Accessories



Part No. PTB3-53 Extension Tool bit holder to enhance capacity upto 406mm O.D. (16")Pat No. PTB3-42 Gripping segment above 274mm i.d. One set covers 4mm i.d. range.Parts No. PTB3-FRL : Portable FRL Stand with Quick change couplings & 3 Meter Hose.
All Performance figures are at 6.3 Kg/cm2 (90 p.s.i.)
Specifications may change due to continuous innovations from time to time.
