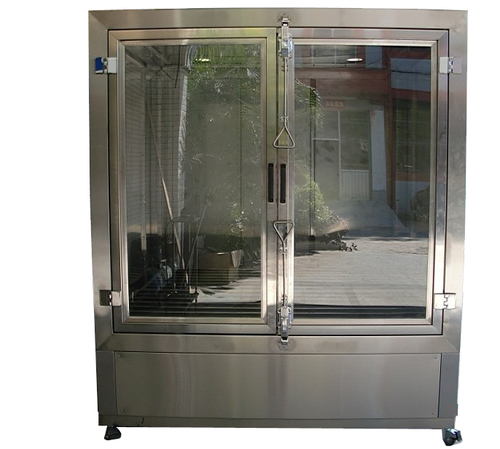

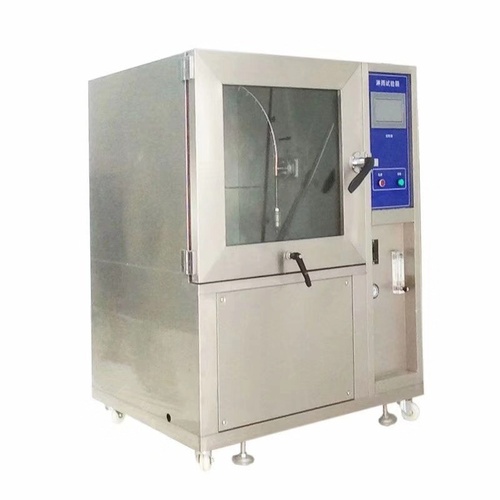

Rain Spray Test Equipment

Our offered Rain Spray Test Equipment is suitable for testing the adaptability and reliability of electrical and electronic products, materials, spare parts, etc, in the condition of rain and temperature. Can also be used to external lighting and signal device and vehicle lamps shell protection.

Feature:
1. Studio equipped with lighting equipment
2. Rain time, interval time, rainfall intensity, regulate and control apart.

The main technical parameters:
Spray ring radius: 375 and 500mm
Water pipe diameter: I 16mm
Spray orifice diameteri I 0.4mm
Aperture spacingi 500mm
Swing pipe : A 45A a A 60A a A 90A a A 180A i theory numberi
Test stands rotate speed: 1r/min (can be no quarter speed adjustment)
Controller: Import FM type inverter
Times controller: Import programmable computer integrated time controller (Jin Zhong Mo le)
Water pressure control: flow gauge
Observation plane: Large area of toughened glass door visualization
Water supply system, booster pump, water storage
Safety protection leakage, Short circuit, Motor overheating

Chamber structure:
The outside layer is composed of the high quality stainless steel plate, the inner container is the composed of stainless steel tabula rasa.
Large area of visible glass door, easy to observe the test specimens in the testing chamber
The button is made of high quality of tank, can be fixed PU activities wheel, it is convenient for user moved.
