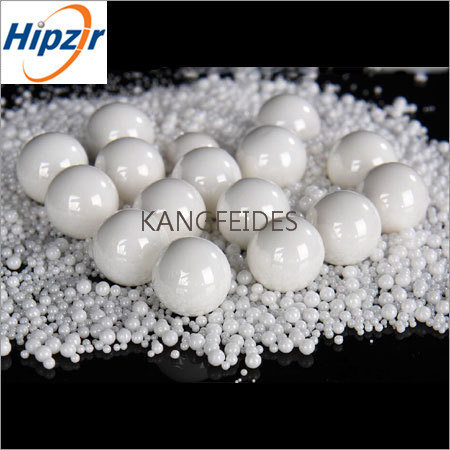

Tzp Grinding Media

We are engaged in manufacturing and supplying excellent quality TZP Grinding Media to our valuable clients.
Packaging & Shipping:-
a c20kg paper box lined with polyethylene(PE) film

Applications:-
a cElectronic Industry: piezoelectric ceramics, inductance materials, semiconductor ceramic
a cBattery Industry: lithium iron phosphate, cobalt acid lithium materials
a cChemical Industry: paint, materials, printing ink
a cCeramic Industry: refractory materials, glaze materials, silicic acid zirconia, structure cerami

Has high density, high hardness and high fracture toughness factures, which provide it higher grinding efficiency than the traditional grinding medium, it can protect materials from pollution and guard against chemical corrosion.

Physical and chemical Specifications
Properties / Grade : HZGM
ZrO2 + HfO2(%) : 94.8 A 0.2
Y2O3 (%) : 5.02 A 0.2
Density (g/cm3) : a Y 6.0
Hardness (Gpa) : > 12
Bending Strength (Mpa) : 1150
Fracture toughness (Mpa.m1/2) : > 9
Grain size (I m) : a 0.5
Modulus of Elasticity (Gpa) : 200
Thermal conductivity (W/m.k) : 3(20 - 400oC)
Coefficient of thermal expansion (10-6K-1) : 9.6(20 - 400oC)
Sphere (Diameter I , mm) : 0.1-0.4, 0.4-0.6, 0.6-0.8, 0.8-1,
1, 2, 3, 5, 7, 10, 12, 15, 20, 50, 55
Cylinder (Diameter I , mm) : 3A 3, 5A 5, 7A 7, 10A 10, 12A 12
