Washers

What Are Washers?

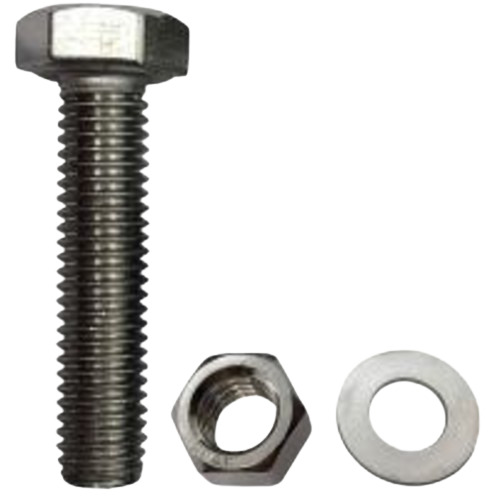

Machine component a washer is used in combination with a nut or bolt to either lock the screw in position or distribute the force of the nut's or bolt's head over a greater area.

Washers can also serve both of these purposes. There are a few different kinds of washers that are used for the purpose of preventing loosening.

To compensate for any increase in the distance between the head of a bolt and the nut, or between the head of a screw and the object being clamped, all of these components serve the function of springs.

In addition to the action of the spring, certain ones of these washers have teeth on them. These teeth provide a locking action by biting into the workpiece as well as the screw wheal. Because their teeth are curved and twisted off of the plane of the washer face, these lock washers are often referred to as tooth lock washers or shakeproof lock washers.

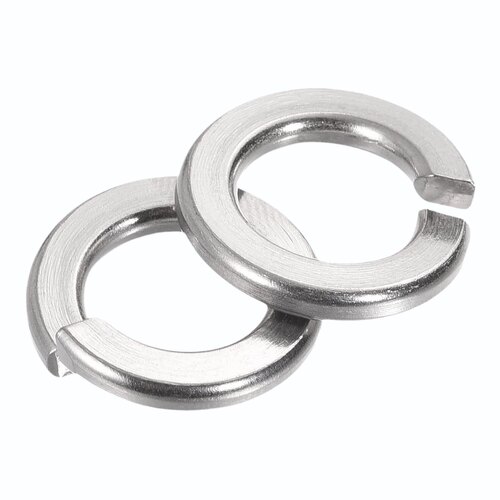

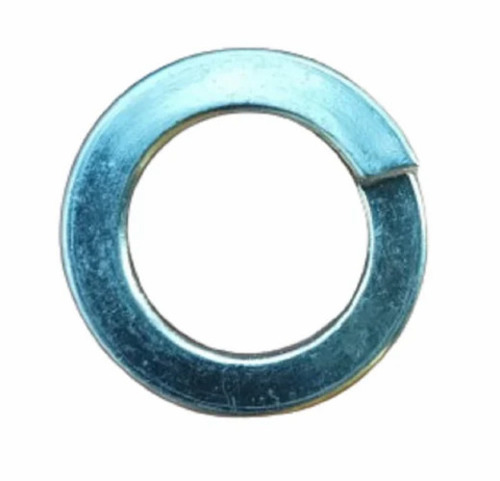

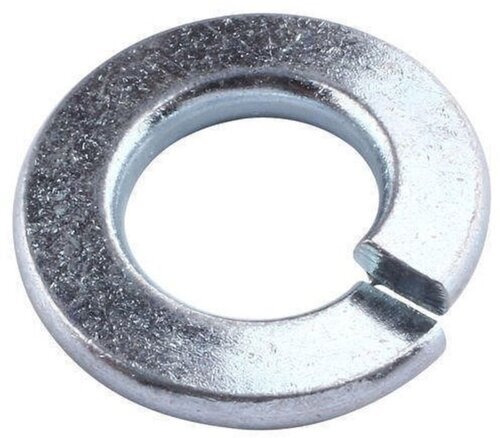

The spring action of the conical washer is useful, but the only locking action it provides is because to friction. One of the types of lock washers that is utilised the most frequently is the helical spring washer.

Types of Washers


Here are many different types of washers.

1. Wave

These washers are often constructed of metal and have a wave-like shape that curves in two different directions. Used in the construction of spacers and cushions.

When Washers are compressed, they function as a spring to keep the tension on the fastener and to support loads. Used in situations that requires a minimal level of fastening strength.

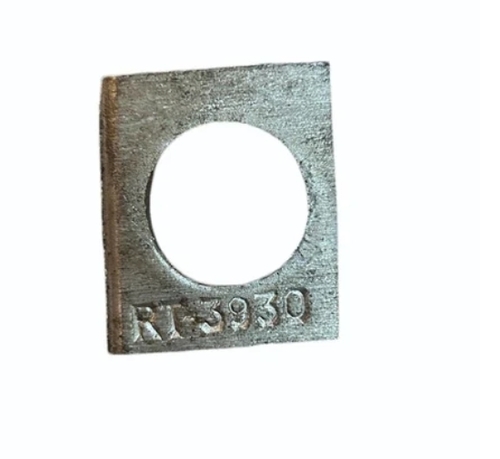

2. Structural

These can be round or square and the top-bearing surface will have an oblique angle cut into it to compensate for surfaces that are not parallel to one another. Utilized in structural applications for the purposes of levelling and shimming.

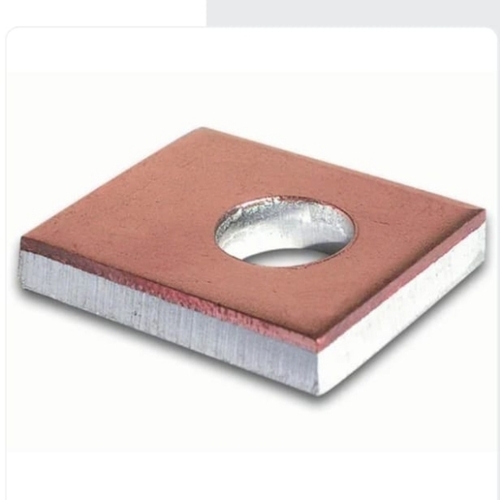

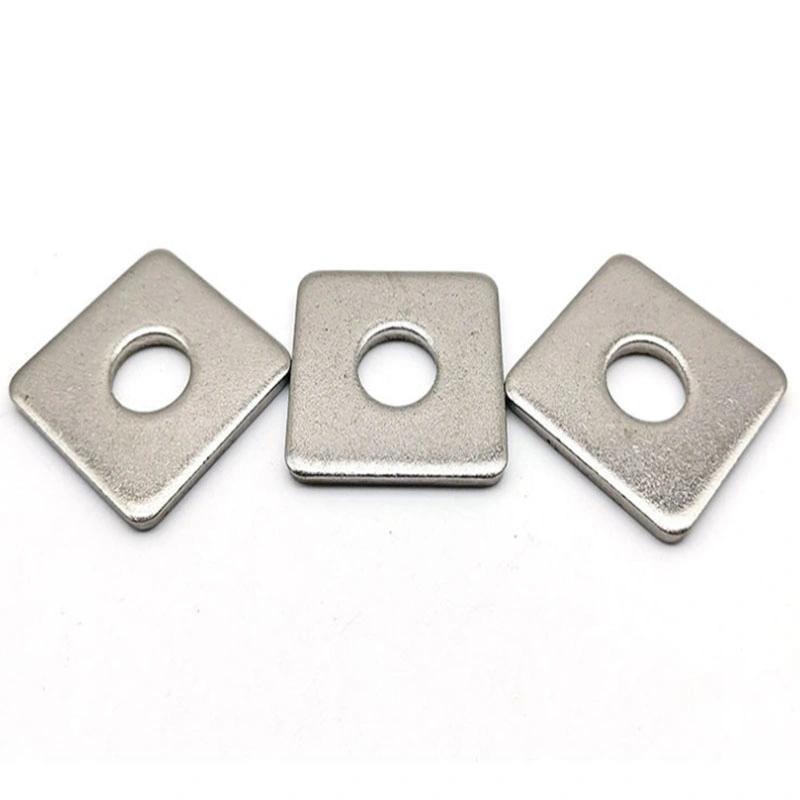

3. Square

Washers that are flat but have a square shape are called square washers. In order to ensure more even distribution of torque, they have a greater surface area than round washers. They have a thick and broad design to guard against the damage that might be caused by the wood fibres that are utilised in the construction of wooden structures.

There are many various kinds of steel that can be used to make square washers, such as stainless steel, galvanised steel, zinc-plated steel, and black oxide steel.

The use of square washers helps to inhibit rotation and provides further protection against corrosion. In seismic applications, they are also utilised to limit the amount of sound, vibration, and electrical current that flows through the system.

4. Spherical

Equalizing spherical washers consist of a two-piece assembly that includes one dish-shaped washer in addition to a flat-shaped washer. It is possible to alleviate tension caused by misaligned parts and nonparallel surfaces as well as unequal thread loads by utilising spherical washers.

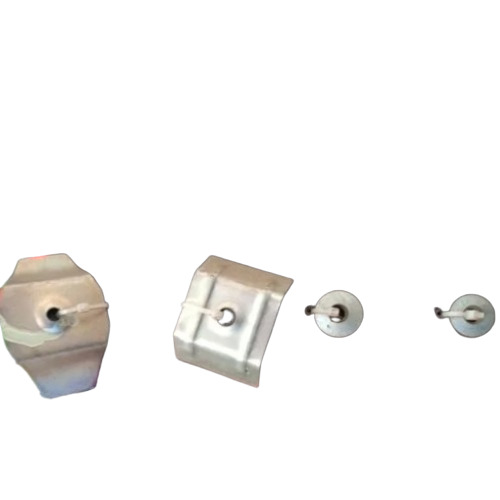

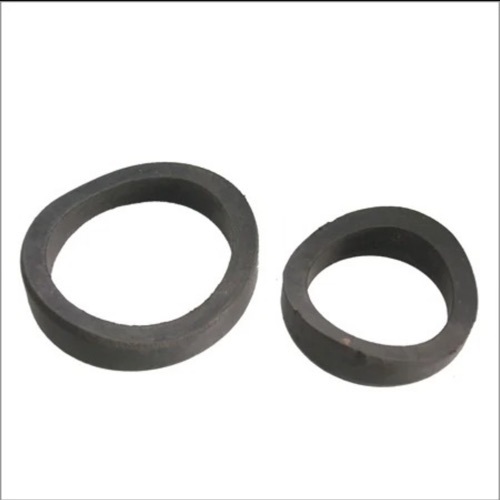

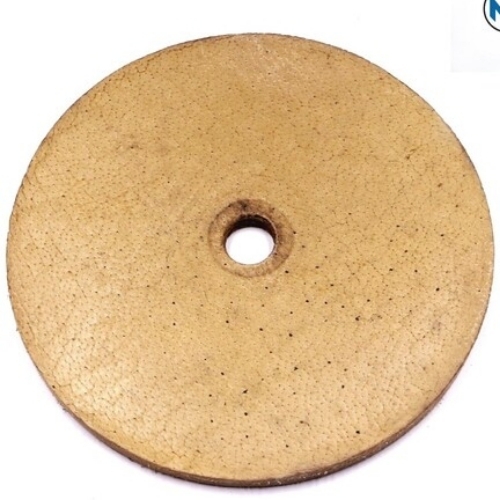

5. Sealing and cushioning

Washers used for cushioning and sealing are typically spherical and composed of materials with a lower hardness. These washers are placed around a bolt or other type of fastener to create a seal.

In addition to their utility in reducing noise and vibration, these washers can also be bonded to metallic washers in particular situations.

6. Rivet

Rivet fasteners can either be constructed of steel or aluminium, and they can have a round or square shape. Rivets are the only type of fastener that can be utilised with rivet fasteners.

Rivet fasteners are excellent not just for fastening to fragile or soft materials, but also for openings that are too large for other types of fasteners.

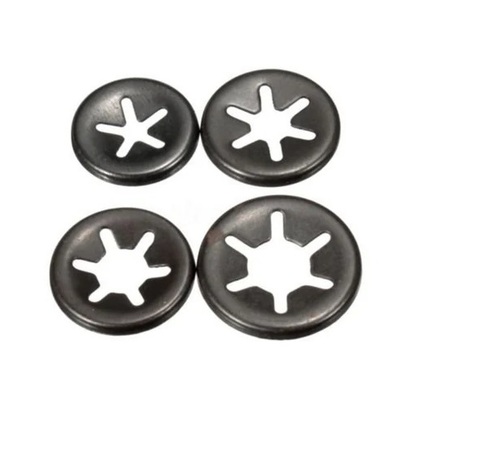

7. Retaining

Retaining washers are available in a wide variety of forms and diameters. They are sometimes referred to as push nuts. They can be fabricated from nylon, zinc, steel, or black phosphate.

These are frequently employed in applications that are vulnerable to vibration or corrosion, such as automotive systems, because they are effective for securing assemblies in their intended positions.

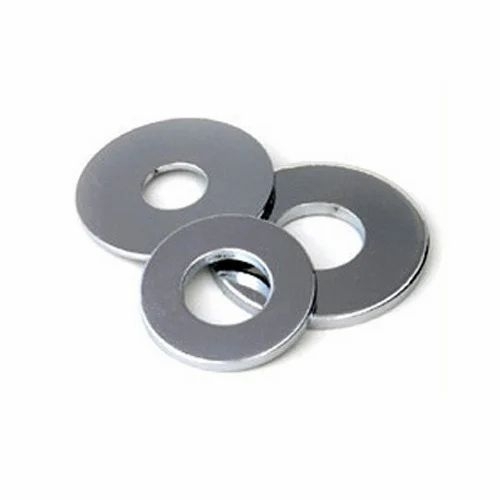

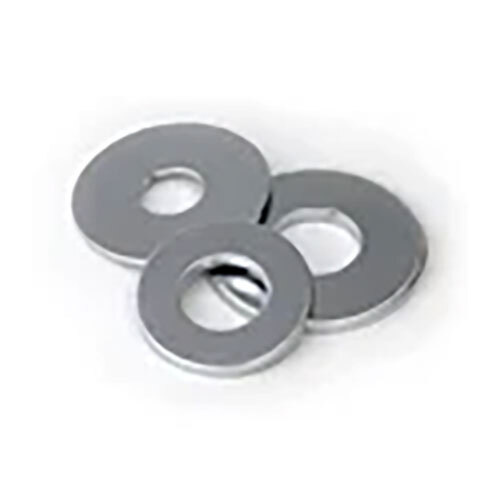

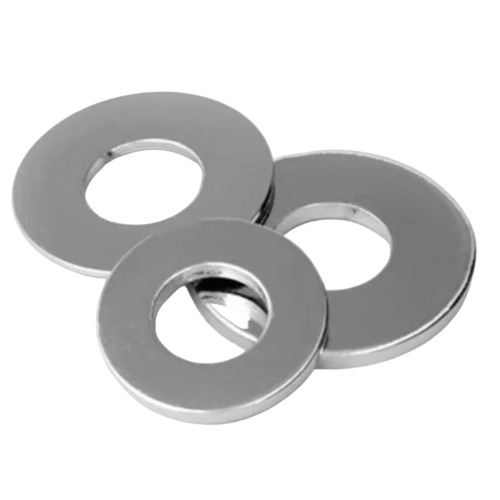

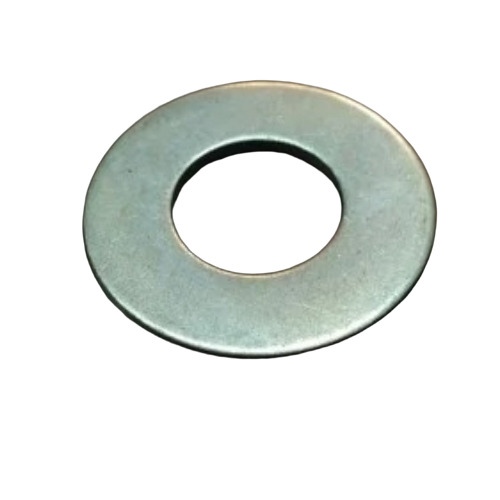

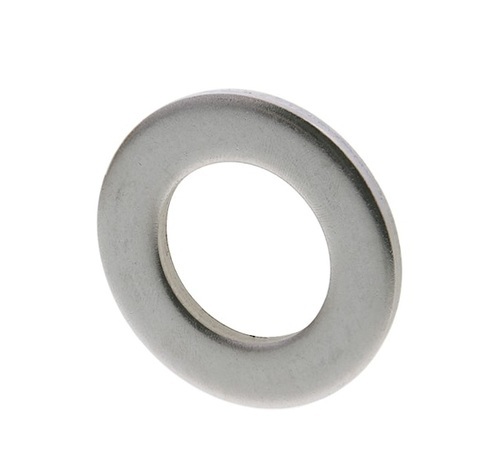

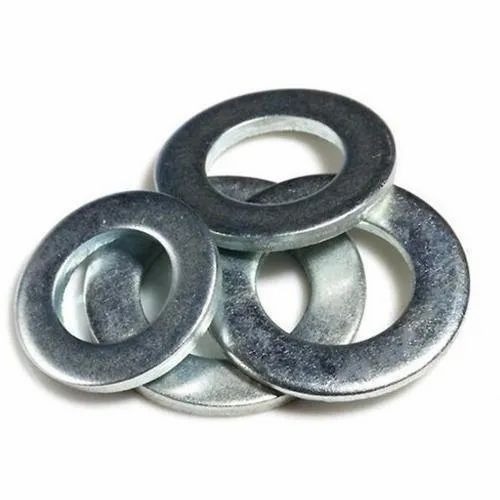

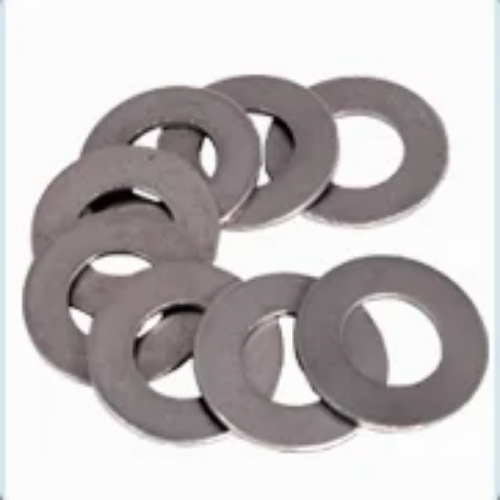

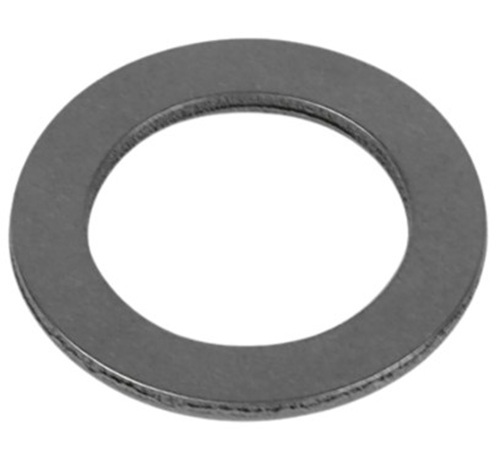

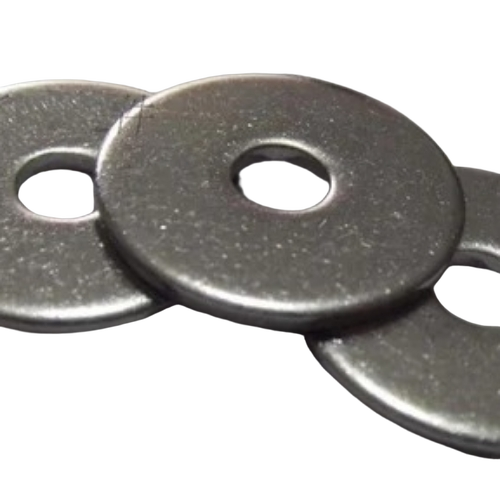

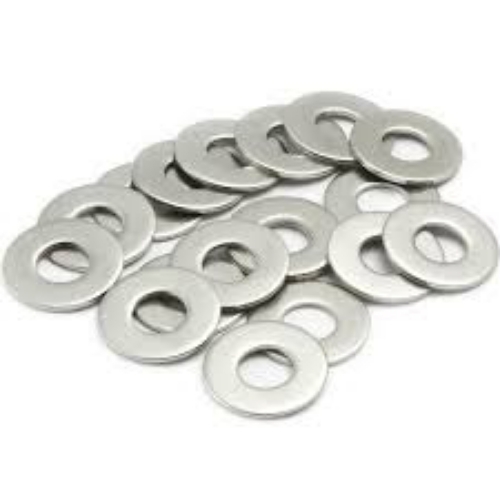

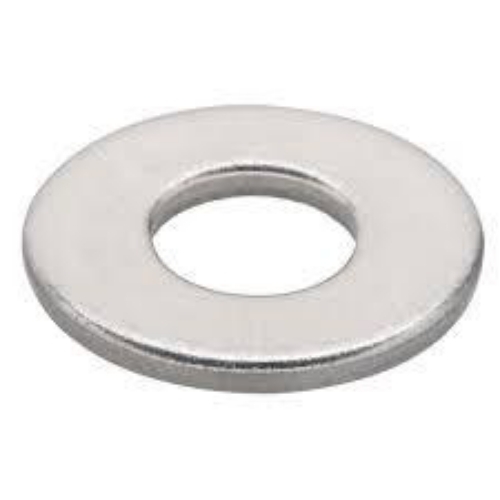

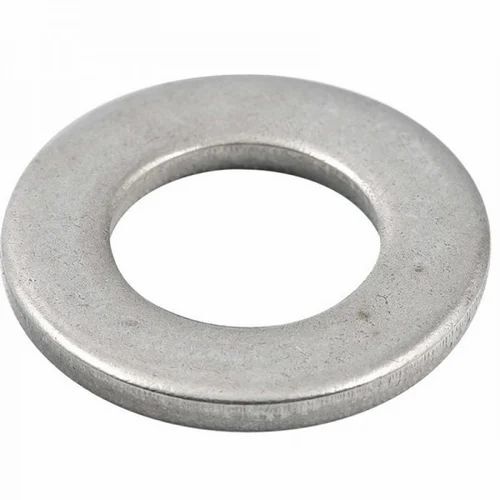

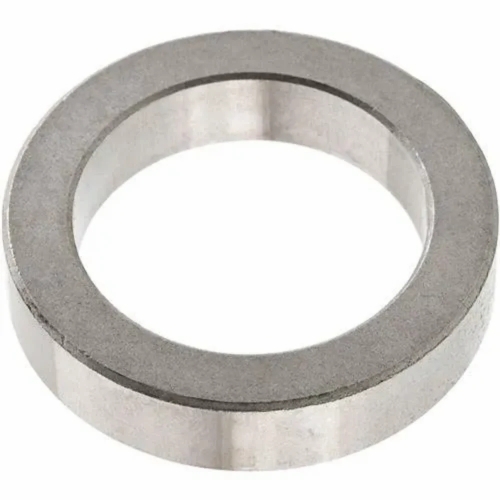

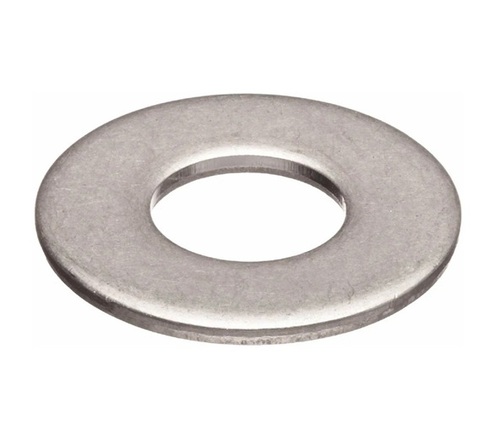

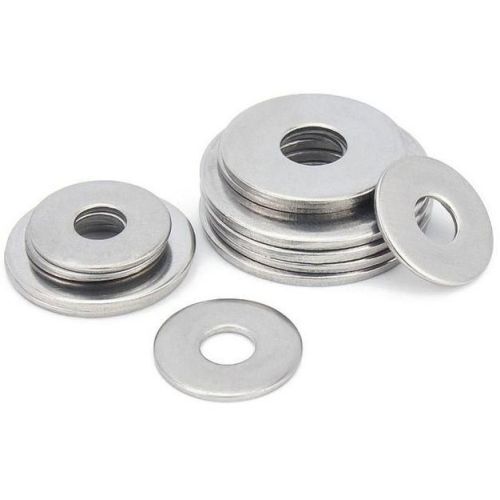

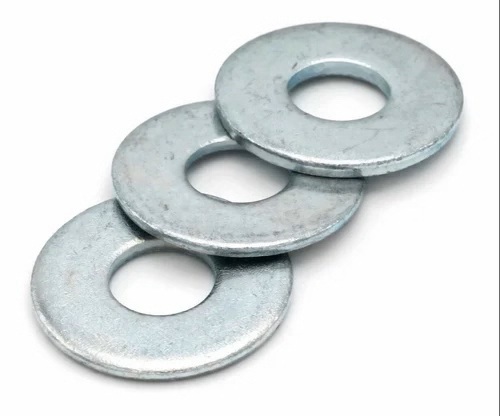

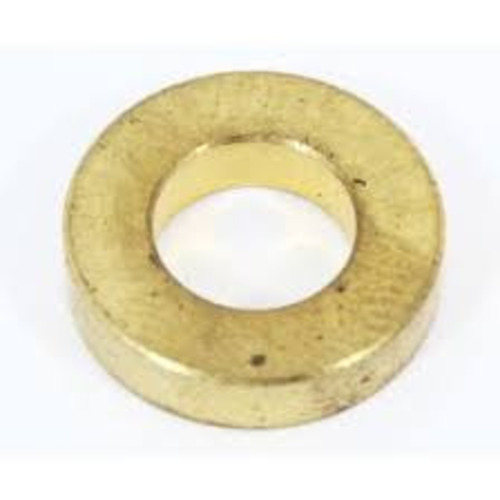

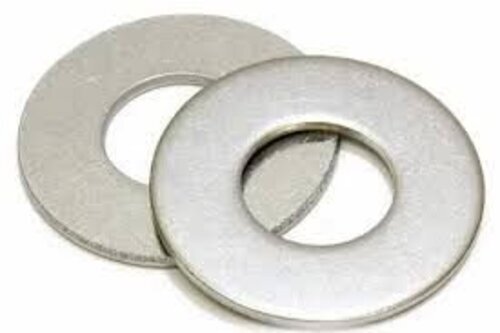

8. Flat

The most popular type of washer has a flat top and bottom and two flat sides. They have a circular shape and can be found in a wide range of dimensions and depths.

Flat washers serve a variety of purposes, including force distribution, the protection of the component to which they are attached, and the modification of the size of an aperture.

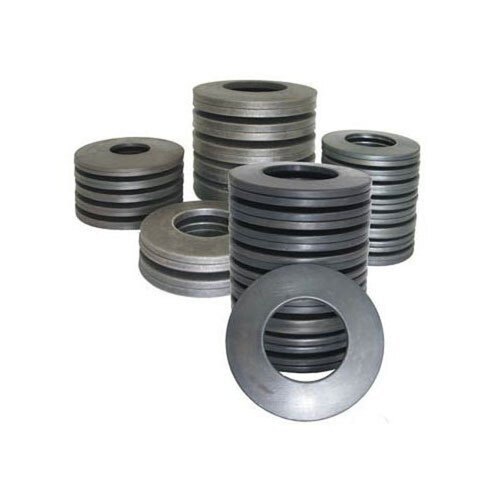

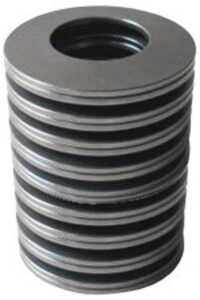

9. Conical

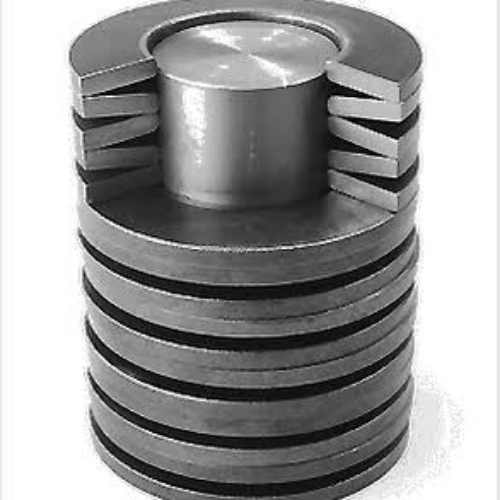

Conical washers are flat washers that have been crushed into a conical shape. These washers are also known as Belleville washers and spring washers.

Used to absorb vibration and stress in applications where there is a higher level of friction, such as in cycling. When arranged in a variety of ways, they have the potential to function as a spring.

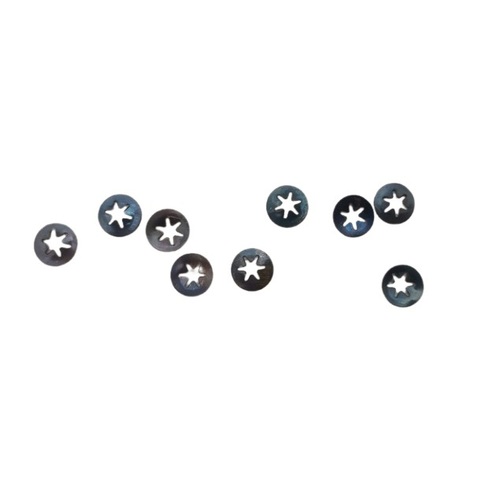

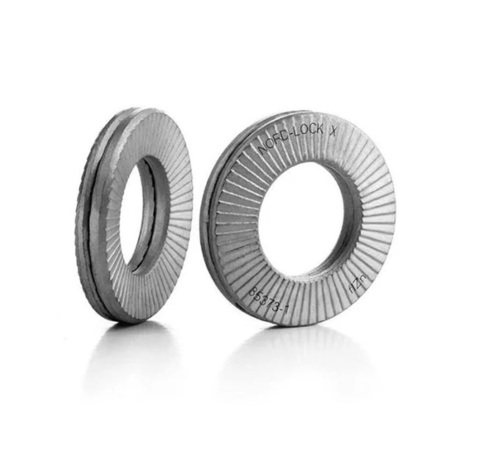

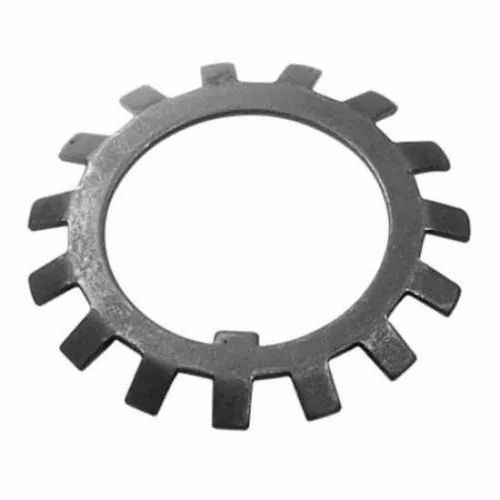

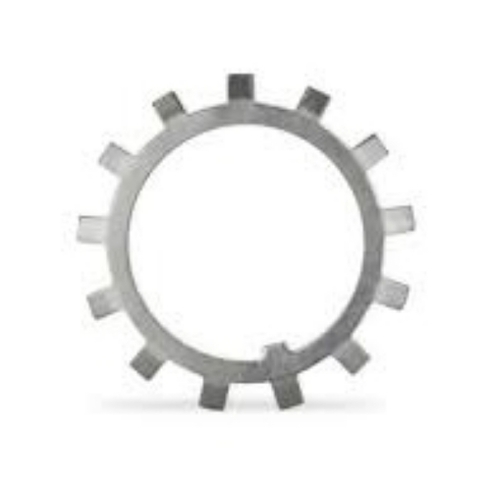

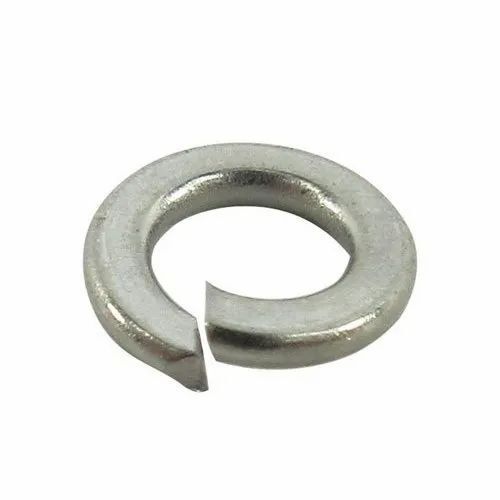

10. Lock

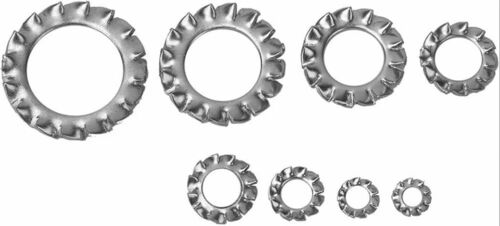

Lock washers are normally manufactured out of some kind of metal and might have a split, coiled, or star-shaped design depending on the manufacturer.

Lock washers are used to prevent the bolt or fastener from becoming loose, essentially "locking" the bolt in place. They are used to prevent the bolt or fastener from becoming loose.

Where are Washers Used?


The following are some different uses for washers and the locations in which they make use of.


1. In Increasing the size of the screws.

The primary function of flat washers is to expand the size of the bearing surface area of a screw, which in turn helps to lessen the amount of surface pressure that is exerted on the object that is being secured.

When the bearing surface lowers as a result of the surface pressure, looseness can occur. Because of this, utilising a flat washer to reduce the surface pressure is an extremely successful strategy.

This is particularly important when the contact area between the bearing surface of a screw and the object being secured is limited, as is the case when fastening to a slot, for example, or when the object being fastened is made of a material that is easily damaged, such as aluminium or resin.


2. Load Distribution

Washers' primary purpose is to evenly disperse the load imparted to the bolt or nut with that they are used.

When driven, threaded fasteners put strain on the material through which they are inserted. It's possible, for instance, that driving a screw into wood can cause the wood to split all around the surface.

Washers lessen the likelihood of such damage occurring by distributing the weight of the fastener across the entire surface of the material in an even manner. Washers are not required to be used with all types of materials.

But washers are useful for protecting against stress-related damage when a threaded fastener is forced into relatively soft materials like wood and other similar materials. This occurs when the material is being driven into the threaded fastener.


3. Vibration Absorption

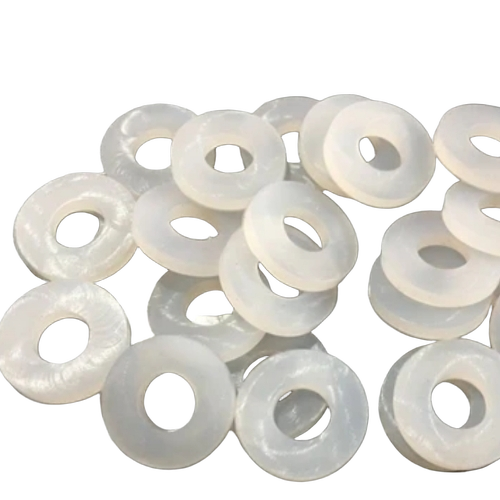

There are sorts of washers that are specifically manufactured to dampen vibrations. They are typically not formed of metal and are referred to as vibration dampening washers or vibration isolating washers.

In its place, they are crafted from a more malleable substance such as plastic, rubber, or urethane. When it comes to the absorption of vibrations, softer materials such as these are superior to harder materials like metal in terms of effectiveness.

When two things are connected with the help of a threaded fastener and one of the things being connected produces a significant amount of vibration, utilising vibration dampening washers can protect the other thing from being damaged.


4. Spacing

Washers can also be used as spacers. If the length of the threaded fastener exceeds the depth of the item, only part of the fastener will be able to be driven into the item, and the rest will protrude out the back.

This prevents you from driving the threaded fastener all the way into the object. When a screw with a length of 4 inches is driven into an object that has a depth of 3 inches, there will be a protrusion of 1 inch of the screw's tip coming out of the back of the object.

Using washers as a remedy is a quick and easy way to fix this issue. Washers can be used to generate padding for threaded fasteners before they are driven into an item. This prevents the fastener from being driven in too far.

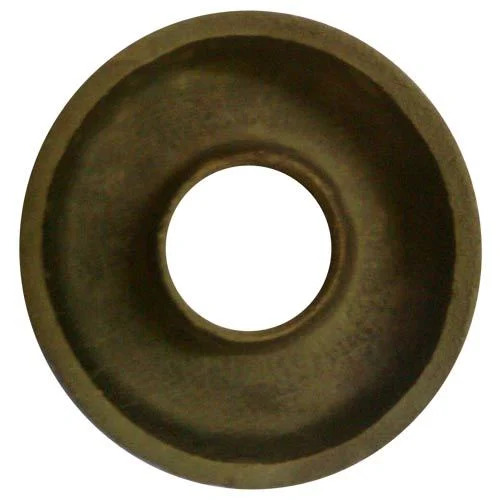

5. Liquid Protection

Other kinds of washers are designed to stop water and other substances from getting in. In order to produce a watertight seal, they are frequently employed in the water pipes and connectors.

Like liquid-sealing washers and vibration damping washers are made of a flexible material that may conform to the shape of the object's surface.

How are Washers Manufactured?

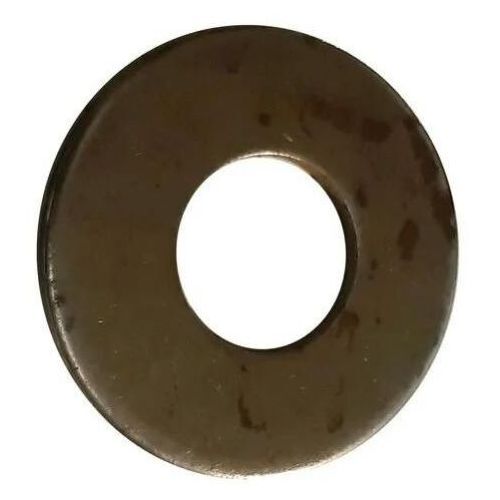

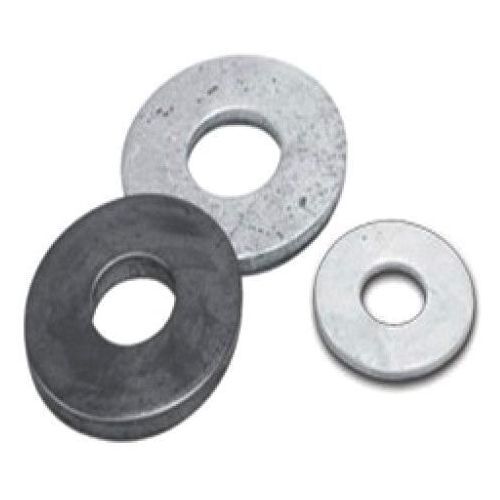

Washers come in many different materials. Most of the time, mild steel sheet is used to make a mild steel washer.

Here are some of the key steps of manufacturing washers.


-Understanding how Washers are made is not hard at all because to their straightforward production process.

-Reprocessing of iron ore to obtain pure iron as a by product.

-In order to transform pure iron into mild steel alloy, 0.2 % carbon and a certain proportion of brass are added to the iron.

-The bending of a mild steel alloy sheet into the desired thickness in accordance with the necessary washer thickness.

-Creating a punching die with the necessary internal and external diameters of the washer that were specified.

-Punching machine requires the sheet of mild steel alloy to be fed into it.

-In accordance with the utilisation of a given number of dies for each stock, an equivalent number of washers would be produced.

Washers are built from a variety of materials and are shaped like a plate or disc with holes drilled in it. Used to lessen the amount of resistance between two surfaces.

In the case of threaded fasteners like bolts and screws, this would be the space between the fastener and the surface. It can also be seen in the connection between such a nut and a bolt.

Metal disc washers, sometimes known as 'penny washers,' are extensively utilised in a wide number of applications, and they are all familiar with these washers.

FAQs: Washer


Q. Best Washer Manufacturer and Suppliers in India?

Ans: The best washer suppliers and manufacturers in India are Kamal Traders, Rimco Overseas, and A G Fasteners.


Q. How to Select a Washers?

Ans: The size of a washer tells you what size bolt it fits, so you will choose your washer hardware to match the diameter of the fastener you chose.


Q. Why do they call them washers?

Ans: That keeps the iron pin at the end of the axel tree from wearing down the nave. That's why they're called "washers.


Q. What are Grade 5 washers?

Ans: Grade 5 washers are Flat Steel Washers. They have a smooth surface for bearing and spread the load of the fastener over a larger area.


Q. What are C washers used for?

Ans: C-washers are made to slide on and off a bolt or shaft in an assembly that is not yet finished.

Q. Is it important to use washers?

Ans: Yes, the threads of a screw can damage the bearing surface of a joint if they dig into the substance during tightening without a washer. Washers on screws help spread the weight.


Q. What size is a washer?

Ans: The size of a washer is 0.3mm, 0.5mm, 0.8mm, 1.0mm, 1.6mm, 2.0mm, 2.5mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm, 7.0mm, 8.0mm, and 9.0mm


Q. Where can you use washers?

Ans: You can get the maximum use out of a washer in two different situations. To begin, if the union you've created with the bolt and nut assembly isn't tight enough, you can add a washer to increase the space between the nut and the item you're attaching. A washer's second most prevalent application is when the fastener must be submerged in water. If there is any chance of leaking in an assembly, a washer will prevent it.


Q. Are washers absolutely necessary?

Ans: Yes, it is necessary to hold the fastener. In order to prevent the screw or bolt from becoming loose and to give some protection, a washer is sometimes used before it is driven into the surface.
