Wire Drawing Dies

Introduction to Wire Drawing Dies

To increase the length and decrease the diameter of the metal wire, the process of wire drawing is carried out. These dies are utilized to perform this process. These tools can help you to get the desired shapes and sizes. This process is very effective and these tools are used to modify the metal wires as per the needs and requirements of the customers. They are widely used in different industries like construction, transportation, electronics, aerospace, automotive, and telecommunication sectors. Tungsten Carbide or diamond is used to make these tools, as they are hard and wear-resistant. They are also used in making various items like wiring and jewelry.

What Are Wire Drawing Dies and How Do They Work?

Wire drawing dies are those unique tools that are mainly designed to decrease the diameter of metal wires. These tools are mainly used to operate by forcing a wire into the tiny hole in the die. Till the required diameter is obtained, the process continues multiple times.
These are arranged in a specific order to carry out the drawing process in a wire drawing machine. To have the required diameter, pass the wire through the first die to reduce the diameter. Cooling and lubrication systems are some other parts that are used by the machine for a better process to take place. These dies are special tools for this drawing process of wire. They let the manufacturers offer wires in various shapes and sizes so as to use them in different applications.

Understanding the Different Types of Wire Drawing Dies:

There are various types of wire drawing dies to fulfill the requirements for wire drawing applications. Some of them are as follows:

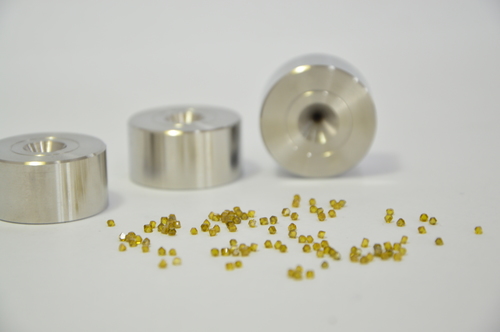

1. Single Crystal Diamond Dies: This is only of the widely used dies. The dies are known for their unique features, like long shelf life, wear resistance, and a great capacity for creating premium wires.
2. Polycrystalline Diamond Dies: Different diamond particles are bonded together to create this type of die. This kind of die is less costly to use.
3. Tungsten Carbide Dies: These dies are designed for making non-ferrous metal wires. As these dies are made using tungsten material, they are known for strength and resilience under pressure.

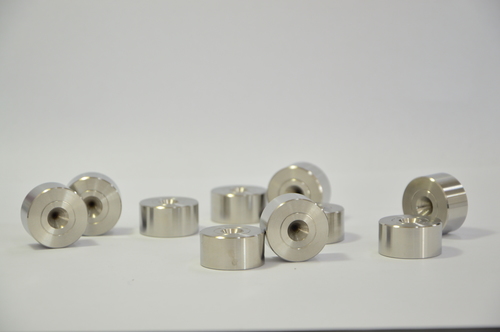

4. Natural Diamond Dies: Made from natural diamonds, these dies produce high-quality wires. They are expensive to use.
5. Shaped Dies: To make wires of particular sizes, like flat or square, use these dies.
6. Extrusion Dies: In this, a metal rod is forced through a tiny hole to make wires.
Different dies are made of different materials, to offer you various types of wires as per the requirements of the applications.

Applications of Wire Drawing Dies

There are many applications where these dies are frequently used, such as:

• Electrical Wiring
• Manufacturing of Cables
• Jewelry Making
• Medical devices
• Aerospace and automotive industries

How to Choose the Right Wire Drawing Die for Your Manufacturing Needs:

We have to select the wire drawing die to perform the wire drawing process effectively and precisely. Some tips and points of selecting the die are given below:

• Different materials are used for making dies. So, use an accurate material for the die.
• A proper wire diameter should be selected for the size of the wire drawing die.
• To give your wire a specific shape, like square or flat, you have to design your die that way.
• The die also depends on its material life. A single crystal diamond die lasts longer than a polycrystalline diamond die.
• To generate high production quantities, you need to have a die that can handle the high stresses of continuous operations.
• Your die should offer a smooth surface finish and close tolerances too.
• The die should be budget friendly to have a smooth process of making wires.

FAQs: Wire Drawing Dies

Q. What are the benefits of using wire drawing dies in industrial manufacturing?

Ans: Let’s go through the benefits of using these dies:

• Using these dies, you can have high-quality wires with strong tolerances and a smooth surface finish.
• These help the manufacturers to produce more wires in bulk quantities in less period of time.
• With the help of these dies, material waste is reduced and low energy is required in making wires. Hence, cost-effective production.
• As the wires produced using dies are uniform in shape and size, you can have a lesser risk of wire breakage. It also offers longer shelf life and lower cost of replacement.
• These dies are very flexible to use, as they can produce different shapes and sizes of wires.
• Therefore, using these wire drawing dies can provide you with very effective wires with less wastage and low power consumption, and is budget friendly too.

Q. How does wire drawing dies work?

Ans: As we know, these dies are mainly used for reducing the diameter of the wire. These dies draw the wire through them with smaller diameters until the desired diameter is attained. This drawing die is mainly made using hard materials, like diamond or tungsten, so as to withstand high pressure and abrasion of the wire drawing process.
To start the drawing process, the coil of wire is inserted into the drawing machine. And then, the wire goes through a series of dies to attain the required diameter. This wire moves to start from the largest die to working down to the smaller die. As the size of the dies decreases, the size of the hole also decreases, to provide the desired diameter of the wire.
The diameter and length of the wire change as it is forced through the die.
The shape of the wire depends on the shape of the die. For a square wire, you need a square die whereas, for a round wire, a round die is needed.
To get the accurate length and diameter, the procedure is repeated multiple times. And when the diameter is achieved, the wire is cut as per the required length, to be used in a variety of applications.

Q. Can wire drawing dies be sharpened or reconditioned?

Ans: Yes, we can easily sharpen and recondition the drawing dies. This is done to bring back the dies to their working order and extend their shelf life. There is a procedure called laser re-cutting that restores the drawing dies. In this procedure, laser removes the damaged die surface. And then, the die is re-cut into the required shape and size. The sharpening process removes the damage to the die. This polishes and grinds the die into a new die. a layer of tungsten carbide is applied over the die to return it to its previous performance.

Q. How are wire drawing dies used in different industries?

Ans: These drawing dies are used in various industries for different applications. Here, we provide some instances of using these dies in several industries:

• In the automotive industry, they are used to make wires for spark plugs, brake cables, to name a few.
• For the aerospace industry, these dies are used to produce wires for landing gears and control cables.
• In electronics industry, wires are used for circuit boards, computers, and communication equipment.
• In the construction industry, these dies make wires for building supplies.
• In the medical industry, wires are used for making medical equipment.
• In jewelry manufacturing, these dyes create wires for chains, stoner settings, and so on.

These wire drawing dies are used in all of the above sectors for creating wires for their applications in required shapes, sizes, and diameters.
